General

Sound components are compiled as shared libraries and can be dynamically loaded at runtime. Using such an approach, the sound components exist separately from the implementation of the Synthesizer framework with only the necessary core headers included. Developers can therefore easily create new sound components and distribute them to users of the Soundgates system.

The following sections describe implementation details of a sound component.

Software implementation

## General structure Each sound component needs to be a subclass of SoundComponentImpl. Some constraints have to be met to create a fully functional component. A template component is available, that includes most of the following things:

There needs to be a public static const char* field name and a getName() method. These will be used determine which component to initialize when a TGF file is parsed and in logging. Macros DECLARE_COMPONENTNAME and DEFINE_COMPONENTNAME(<classname>, <exported name>) can be used to facilitate the inclusion of this.
Ports need to added to their respective list (input or output). The macros DECLARE_PORT3( SoundPort|ControlPort, <port name>, <port number>) and CREATE_AND_REGISTER_PORT3(<classname>, In|Out, SoundPort|ControlPort, <port name>, <port number>) facilitate this process. These macros declare and initialize ports with names m_<portname>_<Direction>_Port.
The numbering on the ports should start at one have no gaps. The numbering only contributes to the variable name, but wrong numbering might lead to confusion in other places.
Input ports and output ports are added to different lists, while control and sound ports are added to the same.
Depending on whether or not the component should only be available as software, hardware or as both, the remaining procedure differs a bit, to offer corresponding create methods:
If the component will only ever be a software component, the actual processing and initialization can happen within the same class by implementing the init() and process() functions. EXPORT_SOUNDCOMPONENT_NO_IMPL(<classname>) needs to be added to the header file in this case.
Otherwise, EXPORT_SOUNDCOMPONENT_SW_ONLY, ..._HW_ONLY or ..._MIXED_IMPL need to be used and a subfolder impl with subclasses called <classname>_SW or <classname>_HW need to created.

Sample manipulation

Usually a sound component will touch all samples. The number of samples in each processing step can be retrieved from Synthesizer::config::blocksize
Access a the i-th sample: (*sound_port_variable)[i]
Write the i-th sample: <sound_port_variable>->writeSample(<value>,i)
Or operate directly on the underlying arrays with sound_port_variable->getRead/WriteBuffer()
When operating directly on the buffers, it is important to note that they are of type char. Casting to int might be required.

Control values

All control values are of type float.
Access a control value: control_port_variable->pop()
Write a control value: control_port_variable->push(<value>)
Sound components should register a callback interface to react on changing incoming control values instead of accessing them directly in their process methods.
Changing values are therefore propagated immediately if incoming control values trigger changes in outgoing control values.
Calculations on control values only need to be done each time an input changes and not in every process() step.

Reading static parameters

Static parameters (e.g. the value of a constant) are passed in to the sound components constructor as std::vector<std::string> params. The float values need to be parsed from this string.

Building

The makefile for a component only needs to include makefiles/common.mk, specify the OBJECTS to build and a rule for a shared library (cf. template makefile) Note that you must have the core library and includes (libsynthesizercore) in your SoundComponents projects to build components, which described in the project settings.

Hardware implementation

This tutorial is based on the template for Hardware Thread sound components which you can find here.

Create Basic VHDL Component

All your component needs is one (or more) output and one enable port. Additionally one or more input ports are possible.

For the following we assume, that we already have an inplemented component (BASIC_COMPONENT) with the following ports.

clk : in std_logic;
rst : in std_logic;
ce : in std_logic;
input : in signed(31 downto 0); for incoming samples
param : in signed(31 downto 0); as another random parameter
output : in signed(31 downto 0); for modified samples

Embed Basic Component into ReConOS Hardware Thread

### General Functionality Each HWT is attached to a FIFO in order to receive data from the Synthesizer. In order to use them for calculations, the HWT copies this data to its local RAM, where the samples, parameters etc are read as required.

General Structure

Basically, the FSM consists of the following states:

IDLE, where the HWT waits for the Synthesizer to start the HWT
REFRESH ARGUMENTS, where the HWT loads the Synthesizer’s data (parameters etc) to local signals
CHECK TRIGGER, where the HWT checks if it has been triggered yet
READ SAMPLES, where the HWT loads the incoming samples to local RAM
PROCESS, where the basic component is enabled to create/modify samples
WRITE TO MEMORY, where the created/modified samples are written back to the FIFO
NOTIFY, where the Synthesizer is informed, that the HWT is finished
EXIT, where the HWT is terminated

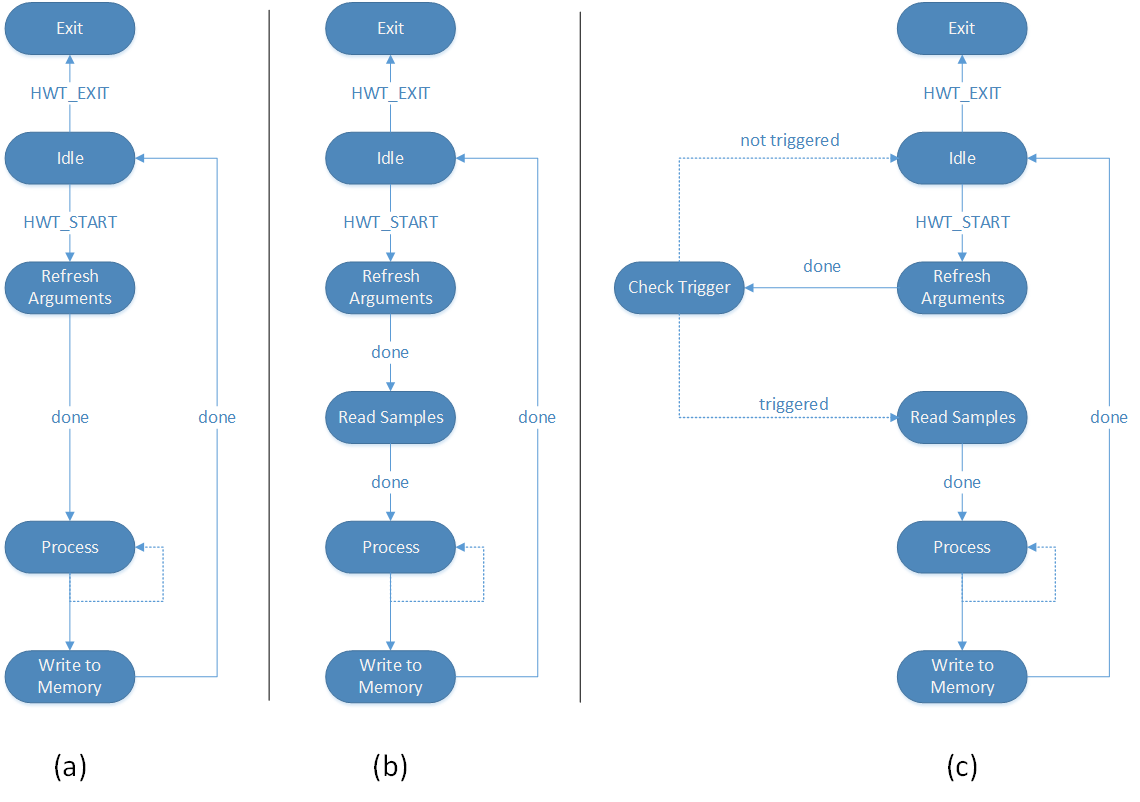

Figure 1: (a) FSM for generating samples without input (b) FSM for manipulating input samples (c) FSM for triggered samples manipulation

As depicted in Figure 1, there are several ways to create HWT. Figure 1a is used for HWTs that only create output samples e.g. a Sawtooth wave generator. Hence, it does not need states for reading input samples or for checking triggers. In the case that there are samples to comsume, the HWT needs a Read Samples state as depicted in Figure 1b. If there are samples to comsume, which needs to be triggered, one needs a HWT structure as shown in Figure 1c. Samples are only read and processed on if the HWT is triggered.

Retrieve arguments from software

In order to retrieve arguments (e.g. addresses, control values) from the software side, there exist two helper procedures that make life a little easier. You might want to tell your hardware thread where is should read its samples from or where to write the result. One way to do this is to give the hardware thread a read/write pointer to your software-side sample buffer.

You might use native reconos procedures for this task, but the soundgates_reconos_pkg.vhd provides helper procedures for this task:

hwtio_init

Initialize hardware arguement signal.

procedure hwtio_init(
        signal hwt_args : inout hwtio_t
);

get_hwt_args

Get hardware arguements.

procedure get_hwt_args(
        signal i_osif : in i_osif_t;
        signal o_osif : out o_osif_t;
        signal i_memif : in i_memif_t;
        signal o_memif : out o_memif_t;
        signal hwt_args : inout hwtio_t;
        constant argc : in integer;
        variable done : out boolean
);

Example use

Hardware side:


architecture Behavioral of hwt_my_fancy_component is
    ...

    ----------------------------------------------------------------
    -- Hardware arguements
    ----------------------------------------------------------------
    signal hwtio : hwtio_t;

    -- arg[0] = source address
    -- arg[1] = destination address
    -- arg[2] = same random arguements

    constant hwt_argc : integer := 3;

    ...
begin

    sourceaddr  <= hwtio.argv(0);
    destaddr    <= hwtio.argv(1);
    myfacyarg   <= hwtio.argv(2);
    ...
    when STATE_SOME_STATE =>
        get_hwt_args(i_osif, o_osif, i_memif, o_memif, hwtio, hwt_argc, done);

        if done then
            state <= STATE_DO_FANCY_STUFF;
        end if;

    ...

Software side:


	int* srcbuffer  = new int[BLOCK_SIZE];
    int* destbuffer = new int[BLOCK_SIZE];

    int  leon3;

    uint32_t hwt_args[31];

    hwt_args[0] = (uint32_t) srcbuffer;
    hwt_args[1] = (uint32_t) destbuffer;
    hwt_args[2] = (uint32_t) &leon3;

    ...
    reconos_hwt_setinitdata(&m_ReconOSThread, (void *) &hwt_args[0]);

    ...
    leon3 = 42;

Example

This example works with the HWT structure depicted in Figure 1b, as it consumes and manipulates samples. You can see the basic component’s embedment here.

How does the FSM work?

STATE_IDLE: Wait for a Messagebox from the Synthesizer.
STATE_REFRESH_HWT_ARGS: The HWT’s arguments/parameters are refreshed. In this example, they arguments contain sourceaddress, where samples are read, destaddress, where samples are written and param, which is a random argument. These arguments are stored in the signals hwtio.argv(0), hwtio.argv(1) and hwtio.argv(3).
STATE_READ: According to the source address in hwtio.argv(0) 64 samples are read into local RAM
STATE_PROCESS: The signal o_RAMAddr_hwt is the address to the current sample in the local RAM, which is increased after enabling the basic component. This address is pointing to a sample stored in the signal i_RAMData_hwt. In order to write a sample, the signal o_RAMData_hwt needs to be assigned.
STATE_WRITE_MEM: Write local RAM back to FIFO
STATE_NOTIFY: Notify Synthesizer

How to bind signals to the component’s ports?

clk and rst are wired to the Clock and Reset signal from the HWT
ce is wired to a local signal, also called ce
input is wired to i_RAMData_hwt, which depicts the current value from the local RAM, on which o_RAMAddr_hwt points
param is wired to hwtio.argv(2)
output is a driver for the signal o_RAMData_hwt. This stores the modified sample to the local RAM.

Create a PCore

In order to use your HWT, you need to create a directory here, which contains the following to directories:

data - adjust MPD, PAO and TCL files and store them here
hdl/vhdl - your VHDL files (basic component, HWT) are stored here

Pure Data simulation

What do I have to do to create a pd equivalent to our component?

Editor integration

To use a sound component in the editor you need a XML file that contains the description of it. The XML file contains the following informations:

Name
Ports with their attributes
Internal name(s)
Port mappings for the software and the hardware implementations

I will explain the concrete syntax of such a XML file on an example. Consider the sound component fir filter. The first tag is the “Type” tag which contains the type of the component.

	<Type> FIR </Type>

The next tag “Category” is used in the editor to put the components in categories. If the XML description does not have this tag, the component is put into the category “General”.

	<Category> Filter </Category>

The tag “Ports” contains the list of the component’s ports. Each port has its own tag “Port”. It has attributes “Name”, “DataType” and “Direction”.

	<Ports>
		<Port DataType="SOUND" Direction="IN" Name="SoundIn"/>
		<Port DataType="CONTROL" Direction="IN" Name="CutoffFrequency"/>
		<Port DataType="SOUND" Direction="OUT" Name="SoundOut"/>
	</Ports>

The tag “Properties” is optional since only some components have static properties. Each property has a name (attribute “Name”). A property can have an initial value (attribute “InitialValue”) which is optional. Their are two kinds of static properties:

Float properties are described with the tag “FloatProperty”. The value of such a property is a float number.
String properties are described with the tag “UserStringProperty”. The value of such a property can be an arbitrary text. A string property can have predefined options, as you see in the sound component “FIR”:

	<Properties>
		<UserStringProperty InitialValue="Lowpass" Name="FilterType" Options="Lowpass|Highpass"/>
	</Properties>

The options must be separated with “

”. The initial value must be one of the options.

The tag “Code” contains informations for the execution of the component, in the simulation and in the synthesizer. The tag “Simulation” is created by the Atomic Builder. The tag “Device” contains the information that are used by the Soundgates synthesizer. It can have one or two “Implementation” tags. Such a tag stands either for the software implementation (indicated by the type “sw”) or for the hardware implementation (indicated by the type “hw”). An implementation has the attribute “Name” which is the internal name of the component and is used e.g. in the TGF file.

	<Code>
		<Simulation/>
		<Device>
			<Implementation type="sw" name="fir">
				<PortMapping PortName="SoundIn" PortNumber="1"/>
				<PortMapping PortName="CutoffFrequency" PortNumber="2"/>
				<PortMapping PortName="SoundOut" PortNumber="1"/>
			</Implementation>
			<Implementation type="hw" name="fir">
				<PortMapping PortName="SoundIn" PortNumber="1"/>
				<PortMapping PortName="CutoffFrequency" PortNumber="2"/>
				<PortMapping PortName="SoundOut" PortNumber="1"/>
			</Implementation>
		</Device>
	</Code>

Each implementation has a list of port mappings which are used for the descriptions of connections in the TGF file. Each tag “PortMapping” has the attributes “PortName” and “PortNumber”. The in-ports and the out-ports are numbered separately. The numeration of ports starts with 1.

IMPORTANT: For each port of the component there must exist a port mapping!”
